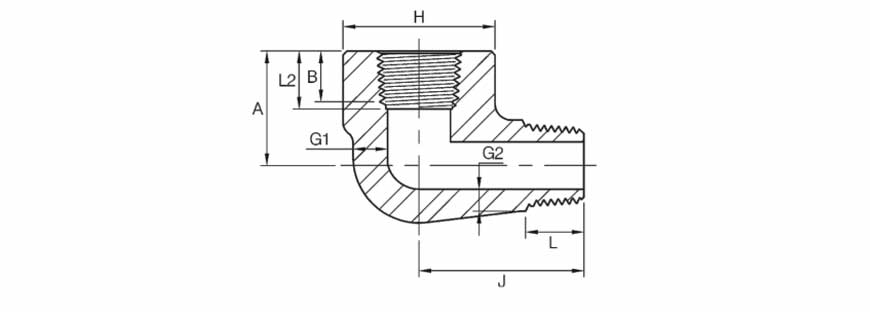

90D STREET ELBOW
ASME B1 6.11 -2011(Revision of ASME B1 6.11 -2009)
Dimensions in Millimeters.
DN |
Nom. Pipe |
H |
A |
J |
G1 |
G2(1) |
B(2) |
L2 (2) |
L |
3000Lb
6 |
1/6 |
19 |
19 |
25 |
3.18 |
2.74 |
6.4 |
6.7 |
10.0 |
8 |
1/4 |
25 |
22 |
32 |
3.30 |
3.22 |
8.1 |
10.2 |
11.0 |
10 |
3/8 |
32 |
25 |
38 |
3.15 |
3.50 |
9.1 |
10.4 |
13.0 |
15 |
1/2 |
38 |
28 |
41 |
4.09 |
4.16 |
10.9 |
13.6 |
14.0 |
20 |
3/4 |
44 |
35 |
48 |
4.32 |
4.88 |
12.7 |
13.9 |
16.0 |
25 |
1 |
51 |
44 |
57 |
4.98 |
5.56 |
14.7 |
17.3 |
19 |
32 |
1-1/4 |
62 |
51 |
66 |
5.28 |
5.56 |
17.0 |
18.0 |
21.0 |
40 |
1-1/2 |
70 |
54 |
71 |
5.56 |
6.25 |
17.8 |
18.4 |
21.0 |
50 |
2 |
84 |
64 |
84 |
7.14 |
7.64 |
19.0 |
19.2 |
22.0 |
6000Lb
5 |
1/8 |
25 |
22 |
32 |
5.08 |
4.22 |
6.4 |
6.7 |
10.0 |
8 |
1/4 |
32 |
25 |
38 |
5.66 |
5.28 |
8.1 |
10.2 |
11.0 |
10 |
3/8 |
38 |
28 |
41 |
6.98 |
5.59 |
9.1 |
10.4 |
13.0 |
15 |
1/2 |
44 |
35 |
48 |
8.15 |
6.53 |
10.9 |
13.6 |
14.0 |
20 |
3/4 |
51 |
44 |
57 |
8.53 |
6.86 |
12.7 |
13.9 |
16.0 |
25 |
1 |
62 |
51 |
66 |
9.93 |
7.95 |
14.7 |
17.3 |
19.0 |
32 |
1-1/4 |
70 |
54 |
71 |
10.59 |
8.48 |
17.0 |
18.0 |
21.0 |
40 |
1-1/2 |
84 |
64 |
84 |
11.07 |
8.89 |
17.8 |
18.4 |
21.0 |
50 |
2 |
102 |
83 |
105 |
12.09 |
9.70 |
19.0 |
19.2 |
22.0 |
(1) Wall thickness before threading
(2)Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external' thread) required by American National Standard for pipe Threads (ANSI / ASME B1.20.1)
DIMENSIONAL TOLERANCE OF ASME B16.11
ASME B16.11-2016 (Unit : mm)
Item |
Type of |
Size |
||||
DN |
6 to 8 |
10 to 20 |
25 to 50 |
65 to 100 |
||
NPS |
1/8 to 1/4 |
3/8 to 3/4 |
1 to 2 |
2-1/2 to 4 |
||
Bore diameter of socket (B) |
All types of |
+0.4 |
+0.4 |
+0.4 |
—0.0 |
|
Bore diameter of fitting (D) |
||||||
±0.7 |
±0.7 |
±0.7 |
±1.4 |
|||
Concentricity of bore (X) |
||||||
+ 0.8 |
||||||
Coincidence of axes (Y) |
1/200 Max |
|||||
Center to bottom of socket (A) |
45° 90° Elbow |
±1.0 |
±1.5 |
±2.0 |
±2.5 |
|
Bottom to bottom of socket (E) |
Full Coupling |
±1.5 |
± 3.0 |
±4.0 |
±5.0 |
|
Bottom to socket to opposite face (F) |
Half Coupling |
±1.5 |
±3.0 |
±4.0 |
±5.0 |
|
