BRANCH OUTLET- BUTT WELDING END

REDUCING SIZE (MSS SP-97-2012)

branch outlet butt welding end

Dimensions in Millimeters

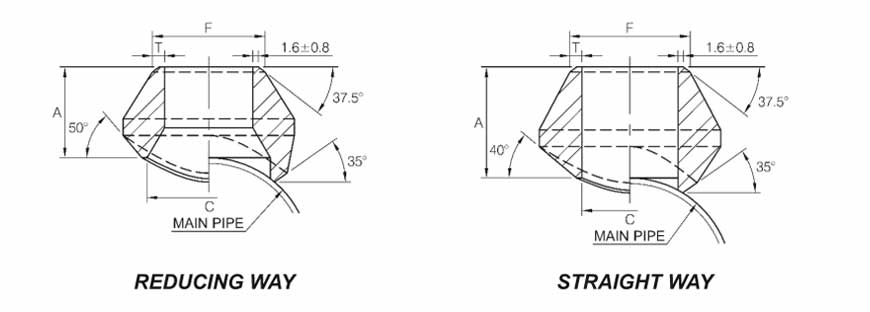

Reducing way

OutLet Pipe(in)

A

G

F

T

1/8

15.7

 13.7

10.3

1. 73

1/4

15.7

13.7

131

2.24

3/6

19 1

17.1

17.1

 2.31

1/2

19.1

21.3

1     21.3

2.17

3/4

22.4

26.7

26.7

2.87

1

26.9

33.4

33.4

3.38

1-1/4

31.8

42.2

42.2

3.56

1-1/2

33.3

48.3

48.3

3.68

2

38.1

60.3

60.3

3.91

2-1/2

41.1

73.0

73.0

5.16

3

44.4

88.9

88.9

5.49

3-1/2

47.8

101.6

101.6

5.74

4

 50.8

114.3

114.3

6.02

5

57.2

141.3

141.3

6.55

6

60.4

168.3

168.3

7.11

8

69.8

219.3

219.3

8.11

10

77.7

273.1

 273.1

9.27

12

85.9

323.9

323.9

9.53

14

88.9

355.6

355.6

9.53

16

93.7

406.4

406.4

9.53

18

96.8

457.2

457.2

9.53

20

101.6

508.0

508.0

9.53

24

11 5 8

603.6

609.6

9.53

(1) Weld Bevel in accordance with ASME B15.25.

(2) Outlet size 4 and less fit a number of run pipe sizes and rue fittings are marked accordingiy.See page 34 for conventional run pipe size combination.

(3) Outlet sizes 5 and up order to specific size combination

Dimensions in Millimeters

Straight way

OutLet Pipe (in)

A

C

T

F

1/4

15.7

11.5

13.7

2.24

3/8

19.1

14.5

17.1

2.31

1/2

19.1

16.5

21.3

2.77

3/4

22.4

21.5

26.7

2.87

1

26.9

27.2

33.4

3.38

1-1/4

 31.8

36.0

42.2

3.56

1-1/2

33_3

42.0

48.3

3.68

2

38.1

53.0

60.3

3.91

2-1/2

41.1

65.0

73.0

 5.16

3

44.4

 88.0

88.9

 5.49

4

50.8

104.0

114.3

6.02

(1) Weld Bevel in accordance with ASME B16.25.

DIMENSIONAL TOLERANCE
MSS SP-97-2012 (Unit mm)

item

1/8"-3/4"

1"-4"            5'-12

14"-24"

Face of fitting
to crotch (A)

+_0,8

±1_6

+_3.2

+_4.8
